Description
- Zero profile at the midline, with a safe depth limit;
- Variable-angle screws can be flexibly inserted, and it can be locked in one step.

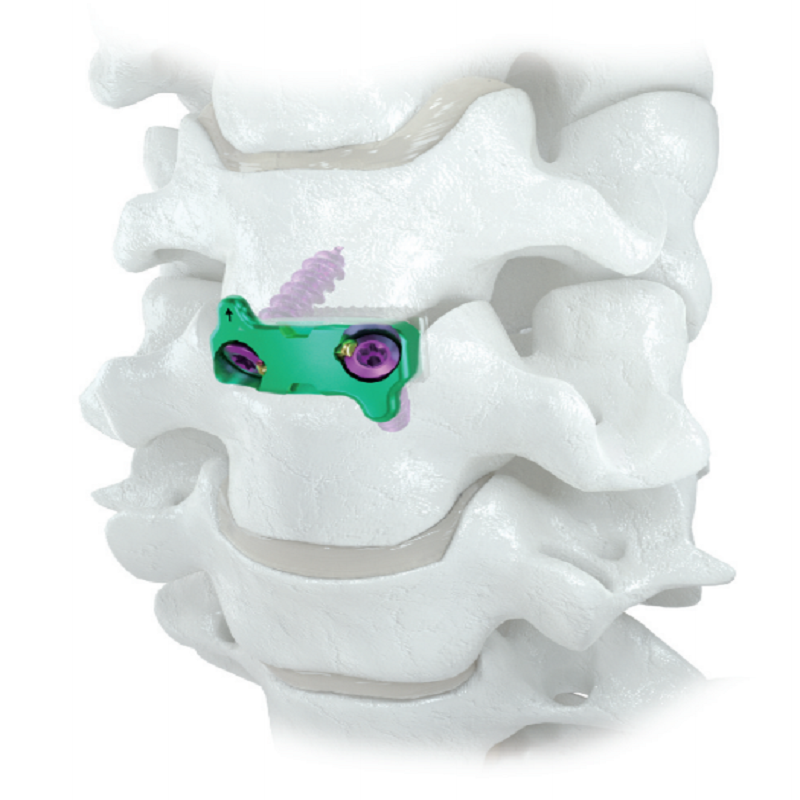

Midline zero-profile design:
It can avoid the irritation to the tissues around the surgical segment;
The placement position is away from the space of the adjacent segment, effectively reducing the ossification of the adjacent segment.
Midline zero-profile design
It can avoid the irritation to the tissues around the surgical segment.
The placement position is away from the space of the adjacent segment, effectively reducing the ossification of the adjacent segment.
Simple operation:
The one-step locking mechanism provides a tangible and visible experience of screw tightening.
It has a smaller surgical incision and less trauma.
Variable-angle screw hole design:
It can provide more screw insertion angles, making it easier for screw placement.
Multi-angle screw placement design:
- The angulation at the cephalic and caudal ends is between 27° and 44° (with an angulation range of 17°).
- The angulation between the medial and lateral sides is between 15° and 29° (with an angulation range of 14°).
- The angle of the screw can change according to the stress variation after the operation, which can prevent potential stress shielding, facilitate bone graft fusion, and prevent the internal implant from dislocating.
Titanium alloy fixation plate with depth limitation
The diagonal depth limitation design prevents the PEEK interbody fusion device assembly from being excessively inserted into the intervertebral space, and keeps the overall structure parallel to the anterior edge of the vertebral body.
The anti-backout nail baffle mechanism prevents the screws from backing out, reducing postoperative complications.
PEEK Interbody Fusion Device
The interbody fusion device is made of high-purity medical PEEK Optima (polyetheretherketone).
The toothed structure on the surface of the internal implant provides initial stability.
The tantalum nail marker can serve as a positioning mark during the imaging process.
It has a larger bone graft capacity, which promotes early fusion.
Internal Implant:
Arc-shaped
Heights: 4mm, 5mm, 6mm, 7mm, 8mm
Self-tapping and self-drilling
Lengths: Gold – 14mm; Blue – 18mm; Purple – 16mm
